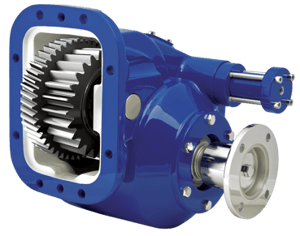

82 SERIES
The 82 Series PTO is a built for high torque and heavy duty applications such as vacuum pumps and blowers. This PTO features an air shift option for the Eaton Endurant with a cast iron housing. The 82 Series has the power to drive high-volume pumps at low or high engine speeds, making it an adaptable PTO for both the Eaton Endurant HD and XD.
TORQUE
Intermittent (lbs. ft.): 500
Continuous (lbs. ft.): 350
HORSEPOWER
Intermittent (at 1,000 RPM): 95
SH SERIES
Created to fill the gap between the TG and 82 Series, the SH8 Series is an air shift only power take-off designed for high torque applications. The SH Series is an easy to mount PTO with an integral air shift design and high torque capacity. The SH Series is available only on the Eaton Endurant HD.
TORQUE
Intermittent (lbs. ft.): 400
Continuous (lbs. ft.): 280
HORSEPOWER
Intermittent (at 1,000 RPM): 76
TG SERIES
One of the most versatile and widely used PTOs in the industry, the TG Series offers many different features that make for a good fit on the Eaton Endurant transmissions. We offer a wide variety of ratio speeds, which allows for a wide range of applications ranging from dump trucks, product pumps, and bulk transfer. You also have access to all the available output options to choose from when installing this PTO on the Eaton Endurant HD and XD.
TORQUE
Intermittent (lbs. ft.): 285
Continuous (lbs. ft.): 200
HORSEPOWER
Intermittent (at 1,000 RPM): 54
RS4S SERIES
The standard in Europe for many years, rear mount power take-offs are typically easier to install as the rear mount is not subject to intereference problems common with side-mounted PTOs. Due to limited access to traditional, side-mount transmission openings, the rear mount is becoming more common in North America. The RS4S Series offers a wide range of options when mounting to the Eaton Endurant HD.
TORQUE
Max Torque (lbs. ft.): 442
HORSEPOWER
Max Horsepower (at 1,000 RPM): 84
