Muncie Power Products

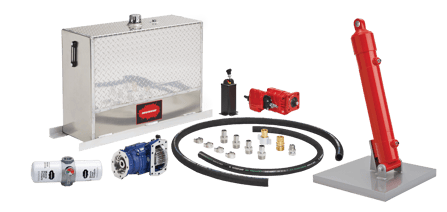

Muncie Power Products offers all of the products and components needed for the wet line kit on your work truck.

power take-offs

Muncie Power Products offers a wide breadth of light-, medium-, and heavy-duty power take-offs for all popular manual and automatic transmissions that feature 6-, 8-, and 10bolt mounting options. We also offer a variety of shift options for your intermittent- or continuous-duty application needs.

hydraulic pumps

Beyond its expansive line of power take-offs, Muncie Power also provides a wide range of hydraulic pumps that can be ordered to fit your specific system requirements. The cast iron hydraulic pumps are available in a variety of sizes and designs—perfect for your dump application needs.

hydraulic reservoirs

Premium-quality reservoirs are available in various material choices (aluminum, steel, and polyethylene) and in 25- to 100-gallon capacities. This comprehensive line of hydraulic reservoirs are 100% pressure tested and suited for a wide range of applications—from small dump trucks to central hydraulic systems to the largest dump trailers. Custom options are also available to meet your specific needs.

hydraulic hose assemblies

As a member of the Interpump Group, Muncie Power offers a variety of high-quality hydraulic hose and fittings to meet a multitude of applications. Choose from braided, spiral, suction, and large bore for hydraulic hose and a complete line of hydraulic fittings for your hose assemblies.

other available components

• Air Shift Consoles
• Hydraulic Filters
• Directional Control Valves
• Hydraulic Cylinders


dual application needs

• Dual applications involve a standard dump trailer in conjunction with walking floor, live bottom, or ejector type trailers
• The D182 valve—a dual-position relief valve— provides easy installation and system protection when using dual applications
• Multi-application control console allowing for easy transition from one application to another

D182 VALVE

3-line system benefits

Many dump bodies function adequately with a 2-line system, as long as they’re not left in neutral. When left operating in neutral, high temperatures occur in the system causing the most common dump pump failure. A 3-line system helps prevent this failure with a separate return line from the pump to the reservoir without needing to force hydraulic oil back through the inlet line.

Remember:

• Allows faster down cycles
• Provides an easier method of filtering the hydraulic oil
• Ultimately runs cooler
